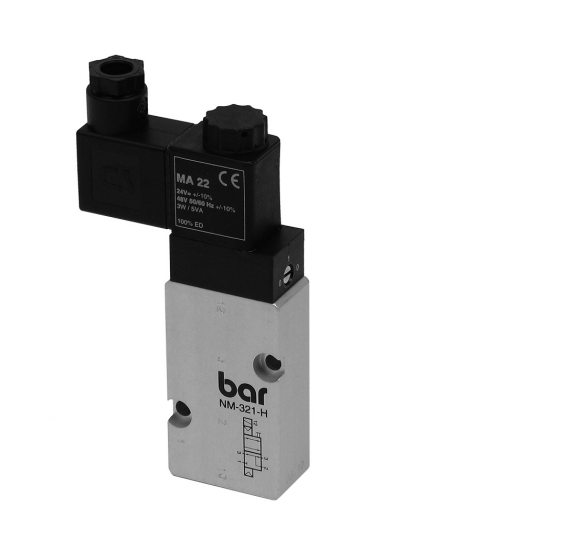

CONTROL VALVE TYP NM 321 H

Product Description

3/2-way NAMUR control valve for driving single-acting actuators of types AS, GTE, GCE and ETE.
The valve will be supplied mounted at actuator, but it is also available as single component.

Characteristic Features

• Fastening screws, code pin and seals belong to delivery range.
• Valve contains an internal exhaust air recirculation (connections 3, side of actuator and line).
• Exhaust air throttling at connection 3 is only allowed with throttle-plate type NDPE!
• Order designation for throttle-plate type NDPE please request separately.
