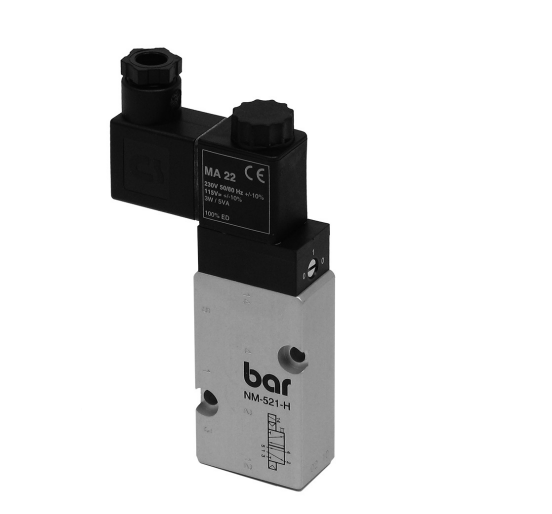

CONTROL VALVE TYP NM 521 H

Product Description

5/2-way NAMUR control valve for driving double-acting actuators of types of AD, GTD, GCD and ETD.
The valve will be supplied mounted at actuator, but it is also available as single component.

Characteristic Features

• Fastening screws, code pin and seals belong to delivery range.
• Throttling of exhaust air possible at connection 3 and 5.
• Order designation for throttle types SDR and FDS please request separately.
