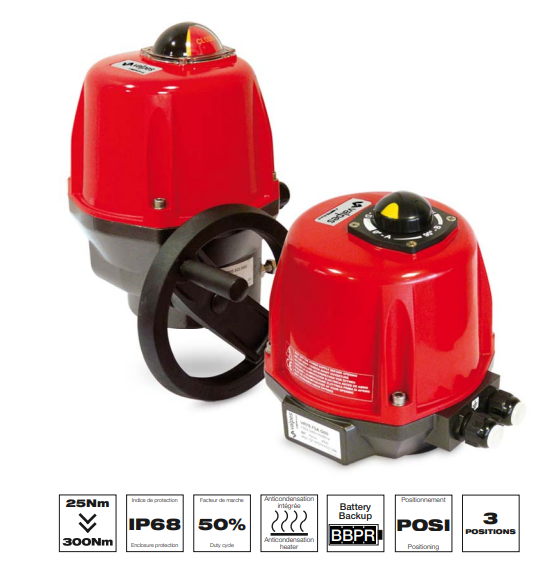

VALPES ELECTRIC ACTUATOR – VR

MODEL: VR

DESCRIPTION
Electric actuator, aluminium housing, and polyamide PA6 UL 94 V-0 or aluminium (option) cover with manual override by the external shaft, for torques from 25 to 75Nm and in accordance with CE-ROHS-REACH Directives.

VERSIONS

• 90° standard version and 180° or 270° version (on request)
• Version for marine applications. High durability coating, 15-year warranty
• Available with:
• Available with: BBPR – emergency backup, POSI – proportional control, 3 POSITIONS, POSI-BBPR, 3 POSITIONS-BBPR, BLUETOOTH, Modbus-RTU

TECHNICAL DATA

• Multivoltage actuator:
  100V to 240V 50/60Hz (100V to 350V DC)
  15V to 30V 50/60Hz (12V to 48V DC)
  3-phase 50/60Hz 400V (not CSA)
• On-off or 3 modulating points control
• 4 adjustable limit switches 5A
• Removable adaptation plates:
  ER 35-100Nm: F05-F07
  ER 10-35Nm: F03-F04-F05

• 3 modulating points control or on-off (400V: 3 modulating points control)
• 4 adjustable limit switches 5A
• Connection F05/F07 according to ISO5211 standard
• Removable star drive
• Manual override
• Visual position indicator
• Regulated anti-condensation heater
• Torque limiter monitored by software (except 400V)
• Failure feedback relay (normal duty, failure) (except 400V)
• RS485 connection (except 400V)
• Mechanical limit stops
• Duty rating: S4 50% (CEI34)
• Working temperature: -20°C to +70°C
• Enclosure:
  IP68 5m / 72h (with aluminium cover)
  IP68 2m / 72h (with plastic cover)
• Weight: 3.1Kg – 4.4Kg
• 2x ISO M20 Kabelverschraubung (ISO – NPT adapters available as option)
