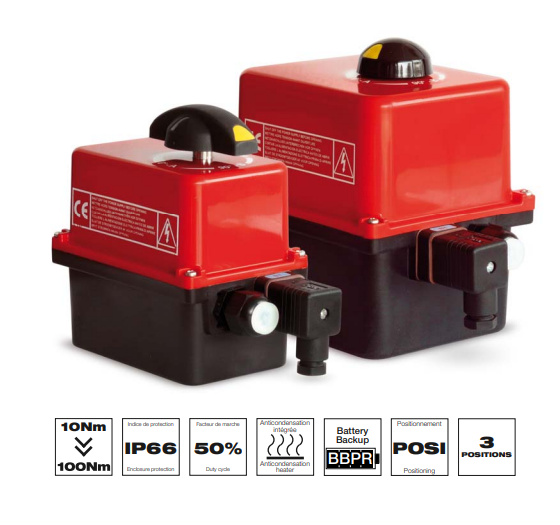

VALPES ELECTRIC ACTUATOR – ER PLUS

MODEL: ER PLUS

DESCRIPTION
90° electric actuator, PA6 housing UL 94 V-0 with secured manual override for torques of 10-20-35-60-100Nm and in accordance with CE-ROHS-REACH Directives.

VERSIONS

• Standard version from 6s to 20s for 90° (without load)
• Long operating time version from 34s to 110s for 90° (without load)
• Different possible rotation angles
• Available with: BBPR – emergency backup, POSI – proportional control, 3 POSITIONS, POSI-BBPR, 3 POSITIONS-BBPR, BLUETOOTH, Modbus-RTU

TECHNICAL DATA

• Multivoltage actuator:
  100V to 240V 50/60Hz (100V to 350V DC)
  15V to 30V 50/60Hz (12V to 48V DC)
• On-off or 3 modulating points control
• 4 adjustable limit switches 5A

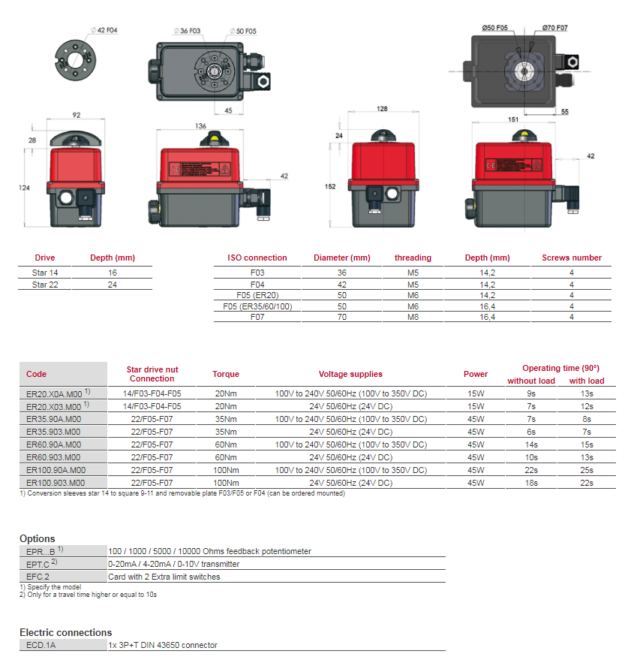

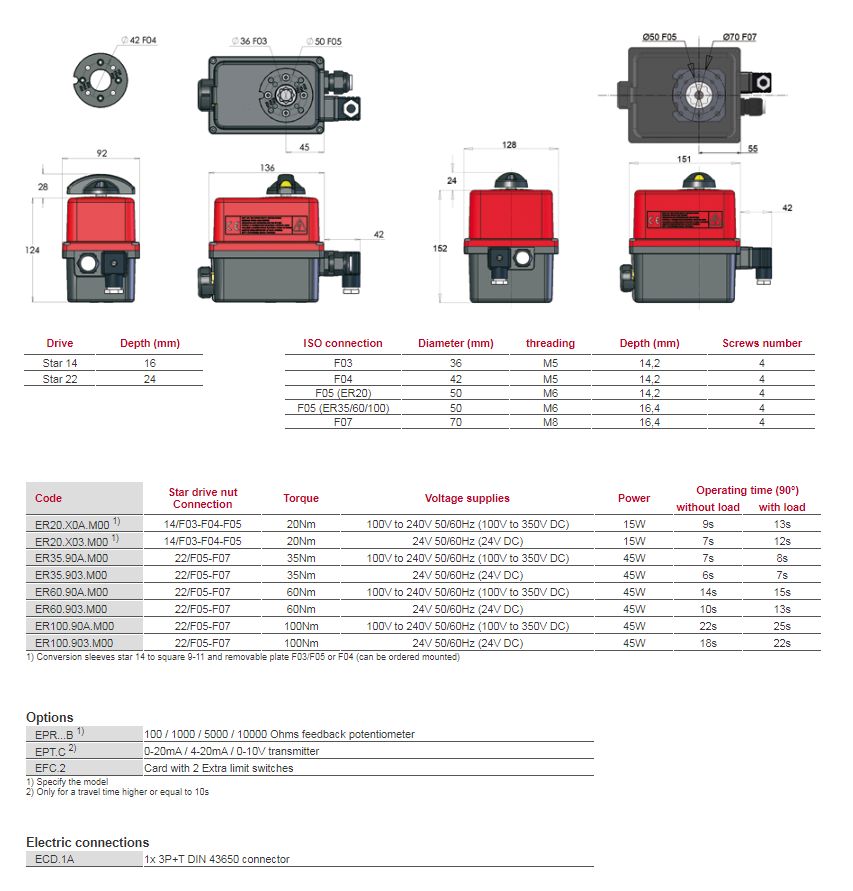

• Removable adaptation plates:
  ER 35-100Nm: F05-F07
  ER 10-35Nm: F03-F04-F05

• Star drive nut
• Secured manual override
• Modular position indicator
• Integrated anti-condensation heater
• Torque limiter monitored by software
• Failure feedback relay (normal duty, failure)
• RS485 connection
• Mechanical travel stops at 90°
• Duty rating S4 50% (IEC34)
• Temperature: -10°C to +55°C
• Enclosure: IP66
• Weight: 1Kg – 2.1Kg
• 1 3P+T DIN43650 connector + 1 ISO M20 (ISO – NPT adapters available as option)
