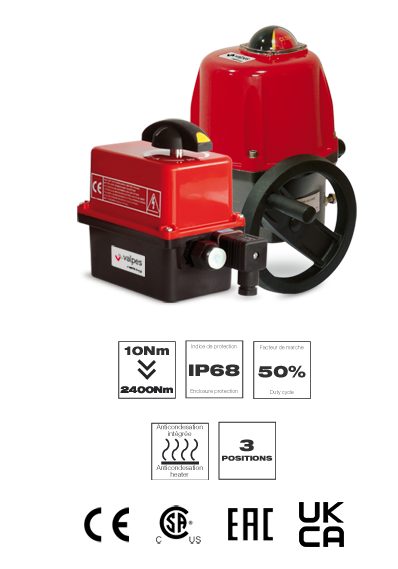

VALPES ELECTRIC ACTUATOR – 3-POSITIONS

MODEL: 3-POSITIONS

Actuators with 3^rd position

DESCRIPTION

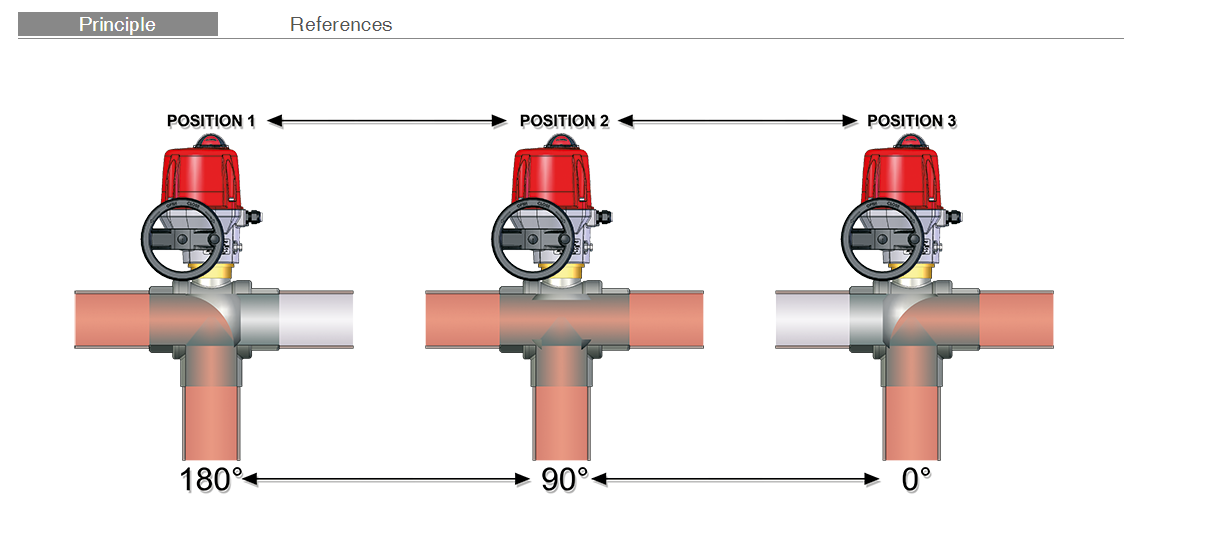

Actuators from 10 to 2400 Nm with an intermediate position between 0° and 90°, 180° or 270°. Can be used 3-way valve or for any application that requires a partial opening/closing before the final position.

COMPATIBLE SERIES

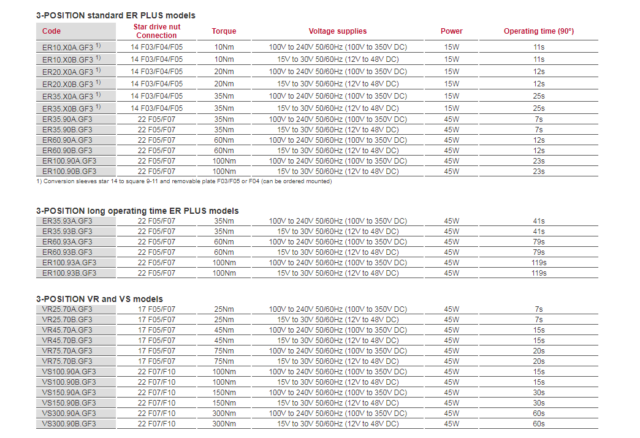

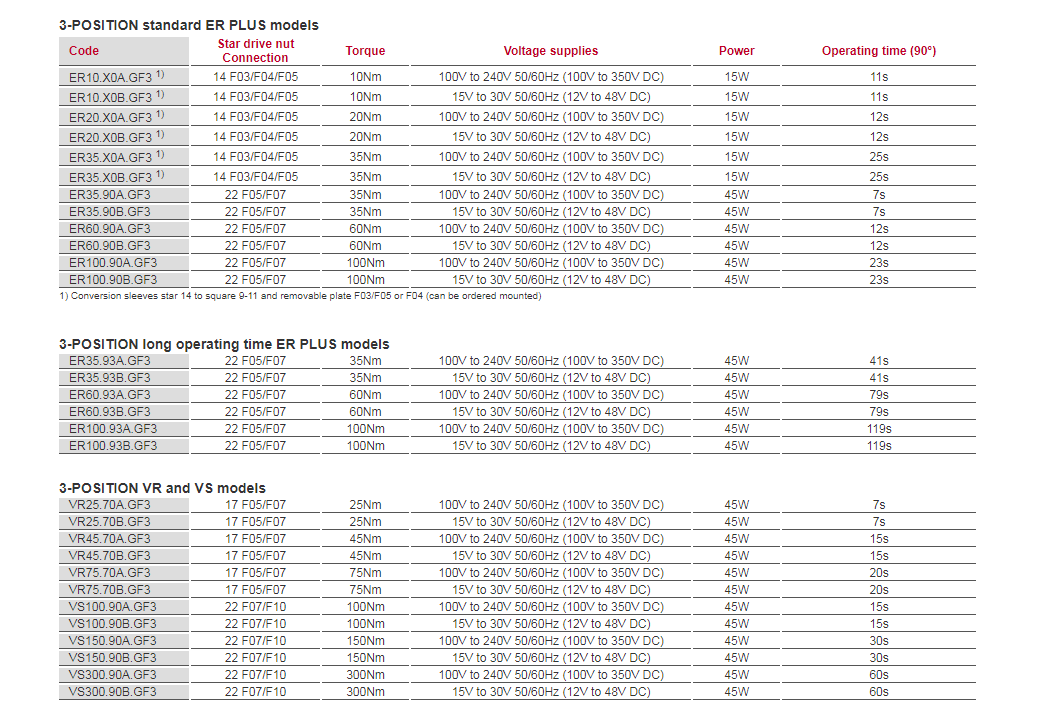

• ER PLUS
• VR/VS

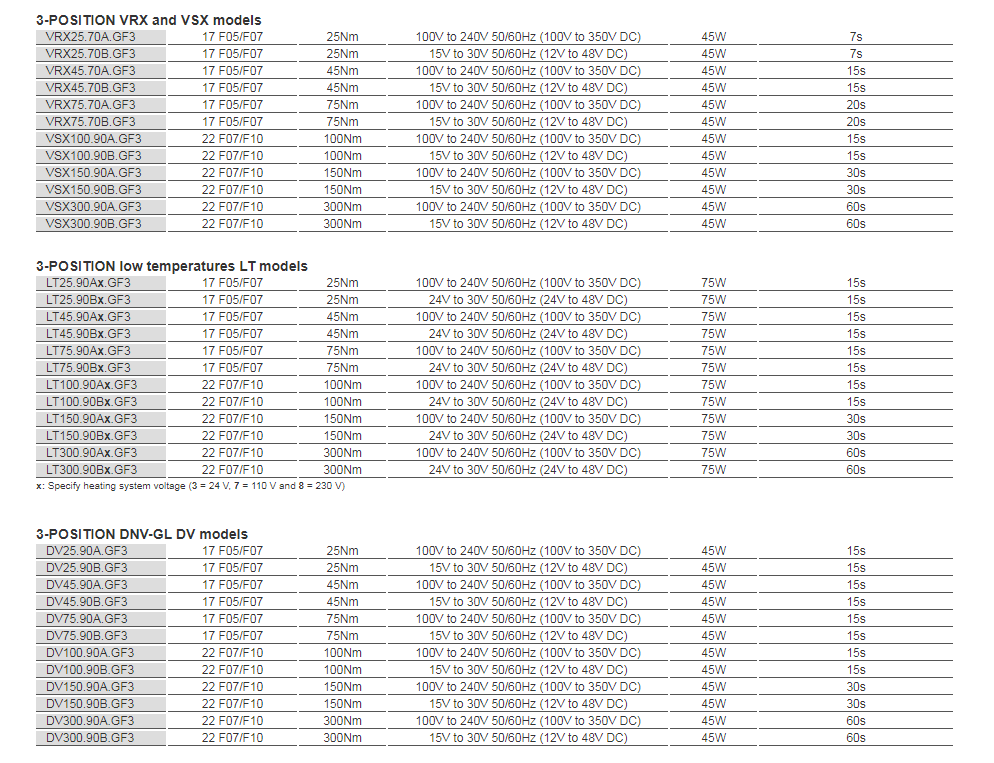

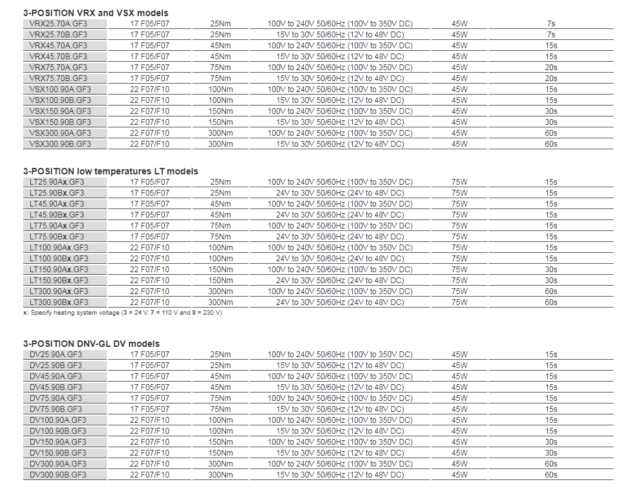

• VRX/VSX – ATEX

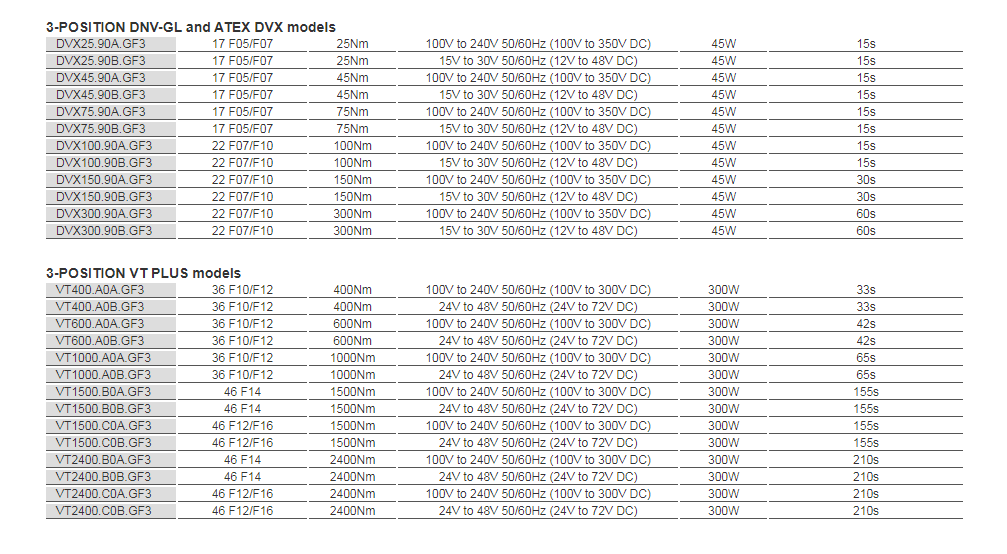

• DV/DVX – DNV-GL and ATEX
• VT PLUS
• LT– low temperatures

FEATURES

• Duty rating S4 50% (IEC34 standard)
• Temperature: -20°C to +70°C
• Integrated anticondensation heater
• Manual override by hand wheel or outgoing shaft
• Multivoltage actuators
• Enclosure from IP66 up to IP68 10 meters during 72 hours

CUSTOMER BENEFITS

• 7 limit switches
• Electronic torque limiter
• Failure report
• Rotation up to 270°
• Preset in factory
