VALPES ELECTRIC ACTUATOR – POSI – BBPR

MODEL: POSI -BBPR

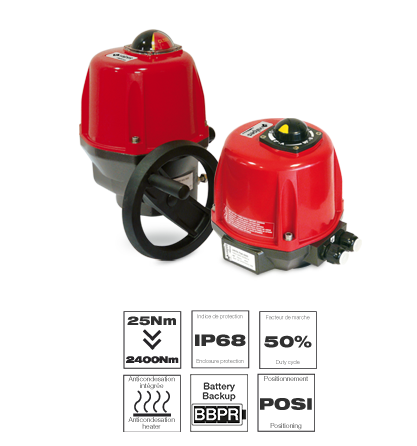

POSI-BBPR actuators

DESCRIPTION
Actuators from 25 to 2400 Nm with a combination of BBPR emergency function and 4-20 mA or 0-10 V analogic positioning. This version includes the AXMART® Bluetooth® option.

COMPATIBLE SERIES

• VR/VS
• VRX/VSX – ATEX
• DV/DVX – DNV-GL and ATEX
• VT PLUS
• MT – multiturn

FEATURES

• Duty rating S4 50% (IEC34 standard)
• Temperature: -10°C to +40°C
• Proportional control (4-20 mA or 0-10 V range)
• Manual override by hand wheel or outgoing shaft
• 4 adjustable limit switches 5A
• Multivoltage actuator:
• Enclosure IP68 up to 10 meters during 72 hours

CUSTOMER BENEFITS

• All in one: no additional wiring required
• Real-time battery charge and system status information
• Power shut off after 2mn to avoid battery discharging
• Quick and easy replacement of the battery
• Bluetooth® connection for monitoring, programming, control and setup the actuator with AXMART interface.
• 2 initial position settings: »normally open» or »normally closed»
• Setpoint and feedback signal 4-20 mA or 0-10 V
• Reversible signals (example: 20-4 mA)
• Anti-condensation heater
• Electronic torque limiter
• Failure feedback relay
• Rotation up to 180° or 270° (on request)
• Preset in factory
