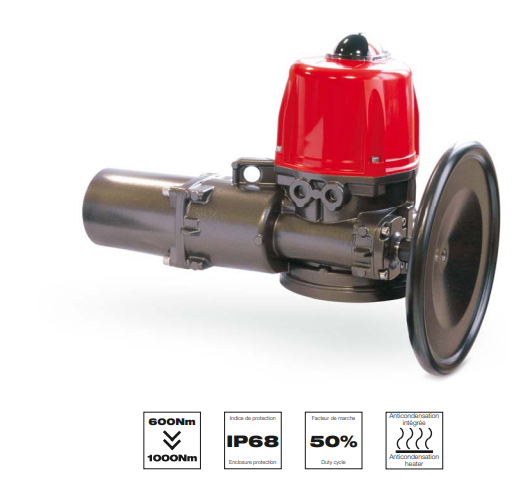

VALPES ELECTRIC ACTUATOR – VT

MODEL: VT

DESCRIPTION
Electric actuator, aluminium housing, and polyamide PA6 UL 94 V-0 or aluminium cover (option) with manual override by hand wheel, for torques from 600 to 240Nm and in accordance with CE-ROHS-REACH Directives.

VERSIONS

• 90° standard version and 180° or 270° version (on request)
• Version for marine applications. High durability coating, 15-year warranty
• Also available in ATEX version (600-1000Nm)

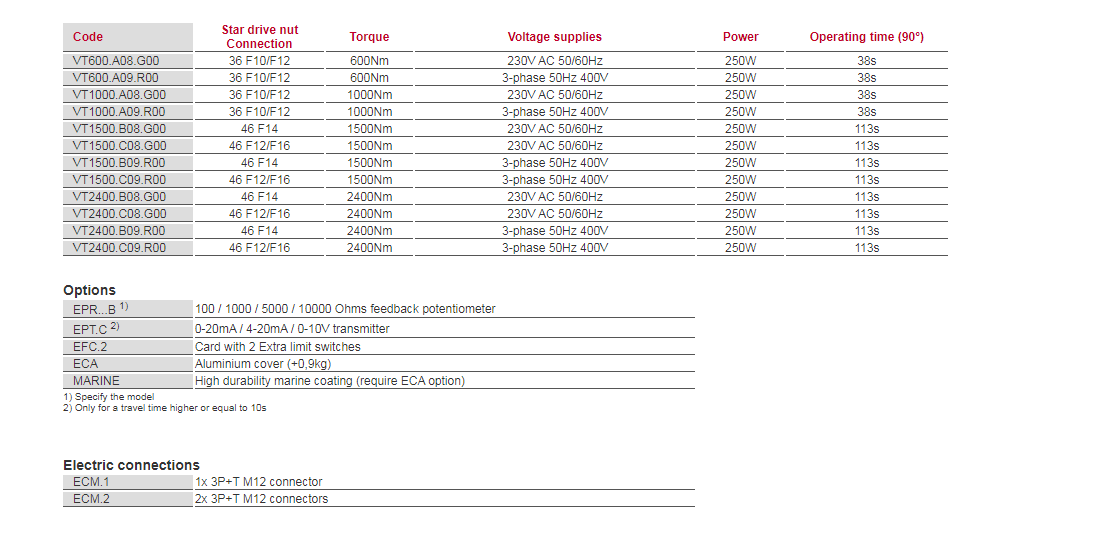

TECHNICAL DATA

• 230V 50/60Hz or 3-phase 50Hz 400V actuator
• 3 modulating points control
• 4 adjustable limit switches 5A

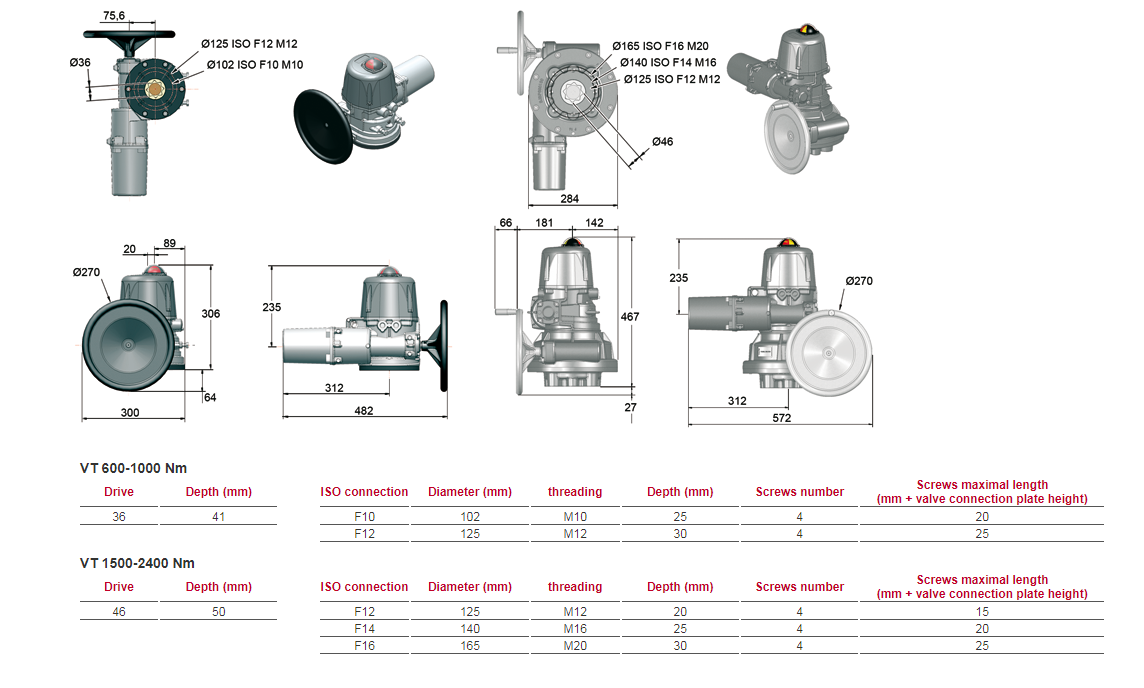

• Connection according to ISO5211 standard:
          VT600-1000Nm: F10/F12
          VT1500-2400Nm: F12/F14/F16
• Removable star drive
• Manual override
• Regulated anti-condensation heater
• Mechanical torque limiter
• Failure feedback relay (normal duty, failure)
• Visual position indicator
• Adjustable mechanical limit stops
• Duty rating: S4 50% (IEC34)
• Working temperature: -20°C to +70°C
• Enclosure IP68:
• Connection according to ISO5211
  2m/72h (Plastic cover)
  2m/72h (Aluminium cover)

• Weight: 24Kg (600-1000Nm) and 53Kg (1500-2400Nm)
• 2x ISO M20
