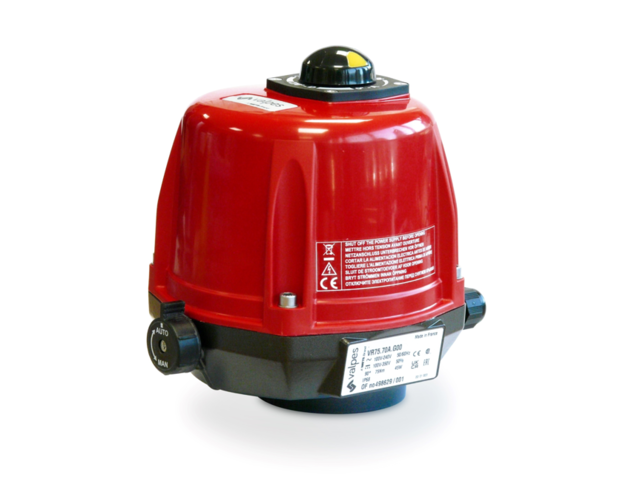

VR

STANDARD EQUIPMENT

iviultivoitage actuator:

100V to 240V 50/60Hz (100V to 350V DC)

15V to 30V 50/60Hz (12V to 48V DC)

400V three-phase (not CSA)

Modulating 3-point control or on-off (400V : modulating 3-point control)

4 adjustable limit switches 5A

Connection F05/F07 according to 1S05211 standard

Removable star drive

Manual override

Tongue imiter monitored by software (except 4000)

Failure feedback relay (normal duty, failure) (except 4000)

RS485 connection (except 400V)

Mechanical limit stops

Visual position indicator

Regulated anticondensation heater

2 ISO M20 (ISO – NPT adapters available as option)
